Rotary Foil Exit (2006)



Rotary Foil Exit (PPT)

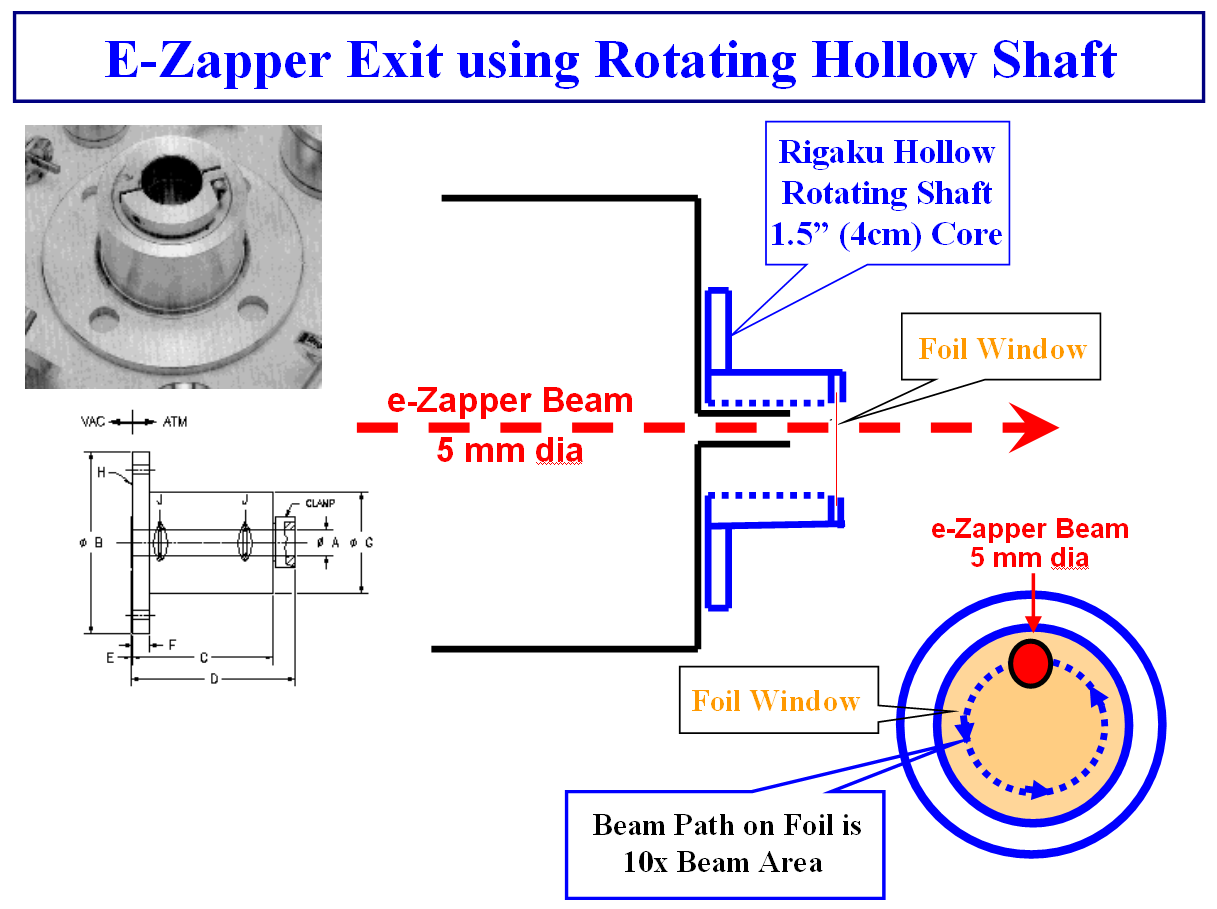

Rotary Foil Exit (Diagram and Photo)e-Zapper Exit using Rotating Hollow Shaft.png (156447 bytes)

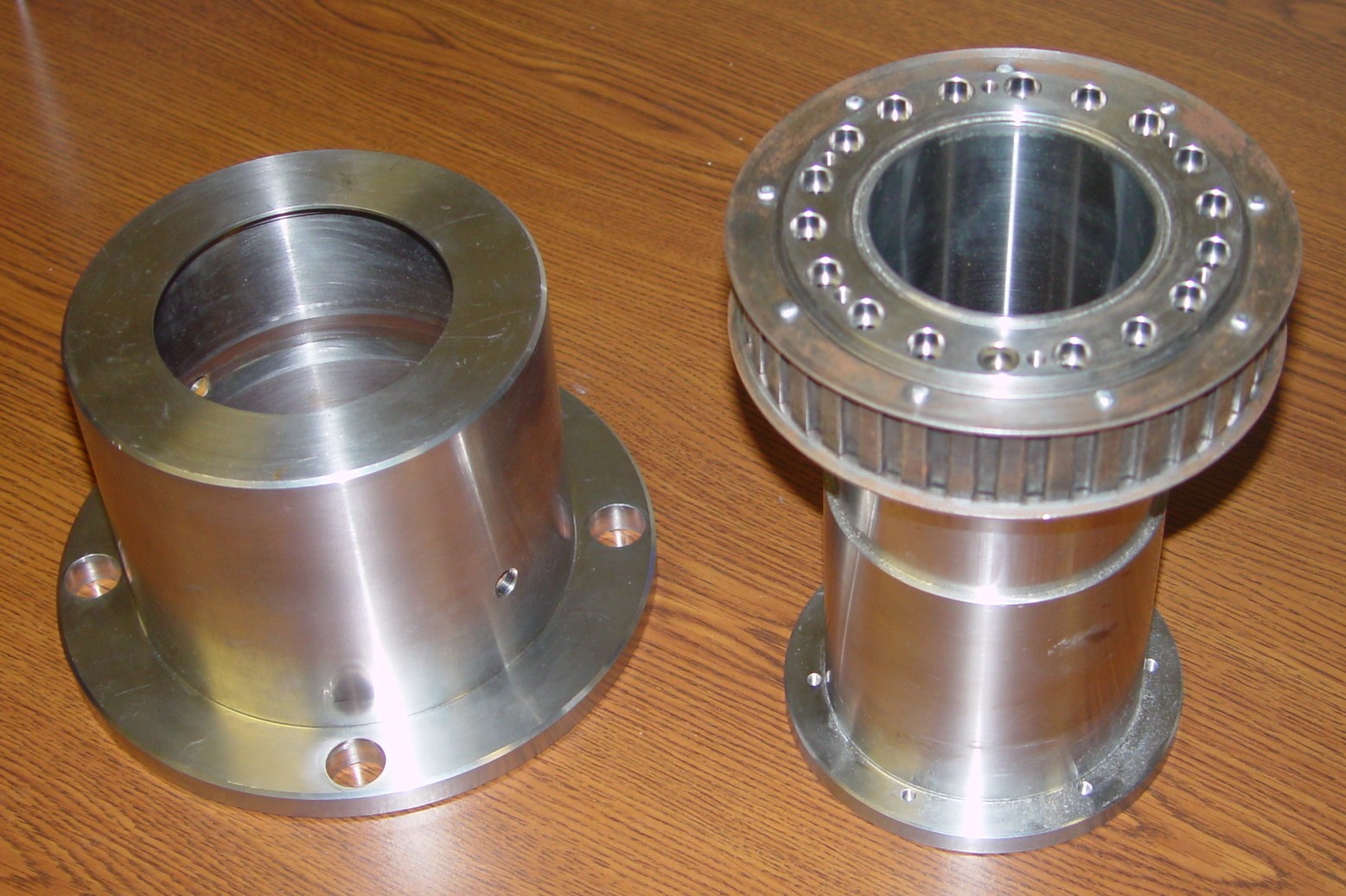

Rotary Flange (photo)Outlet Flange - Ridoku.JPG (345069 bytes)

Entrance/Exit Flanges (paper)

Entrance/Exit Flanges (PPT)

e-Beam Divergence through Be Foil (exp)-1Exper - Divergence after Be Foil.PNG (68256 bytes)

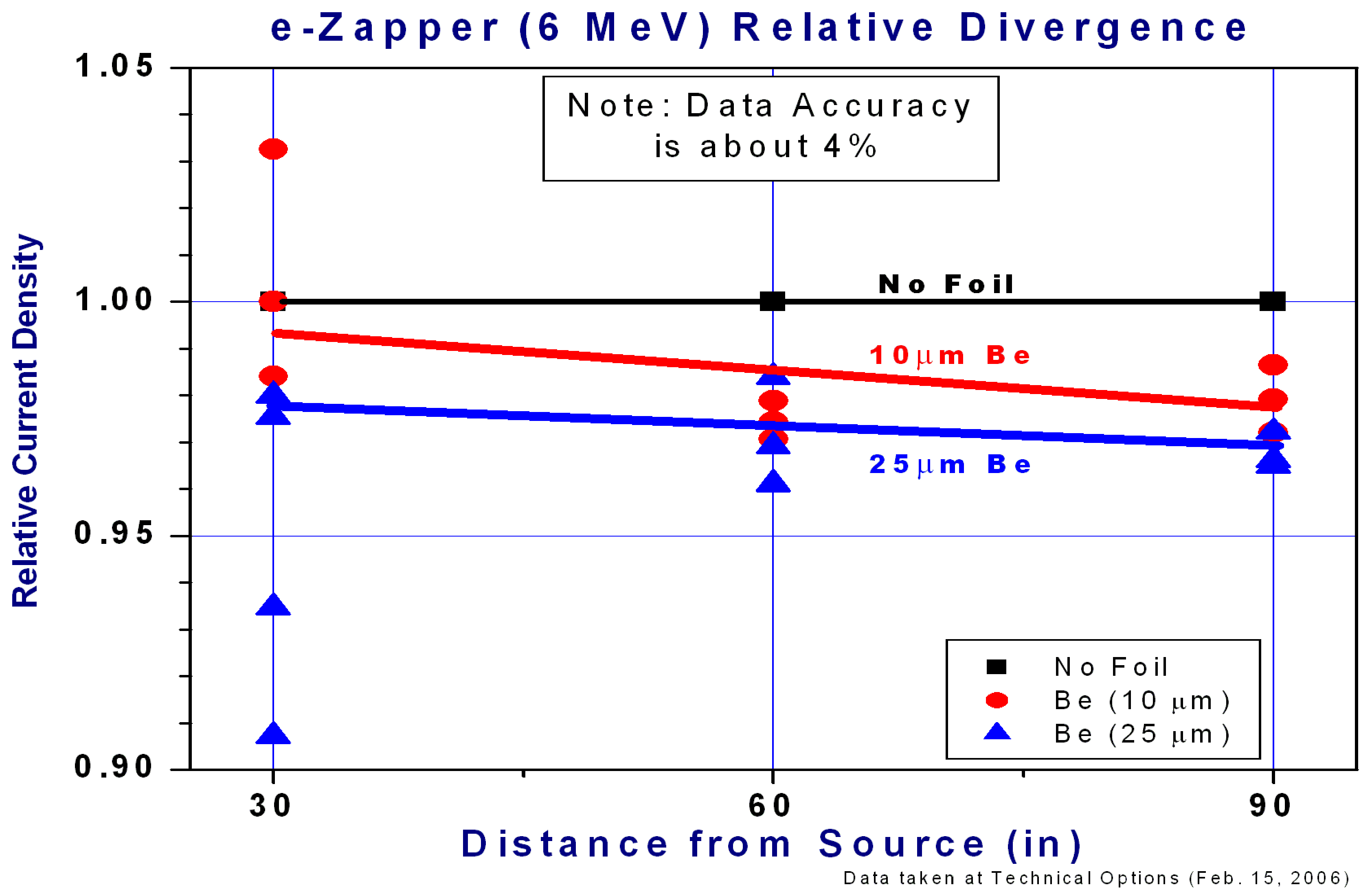

e-Beam Divergence through Be Foil (exp)-2Exper - Relative Divergence.PNG (67294 bytes)

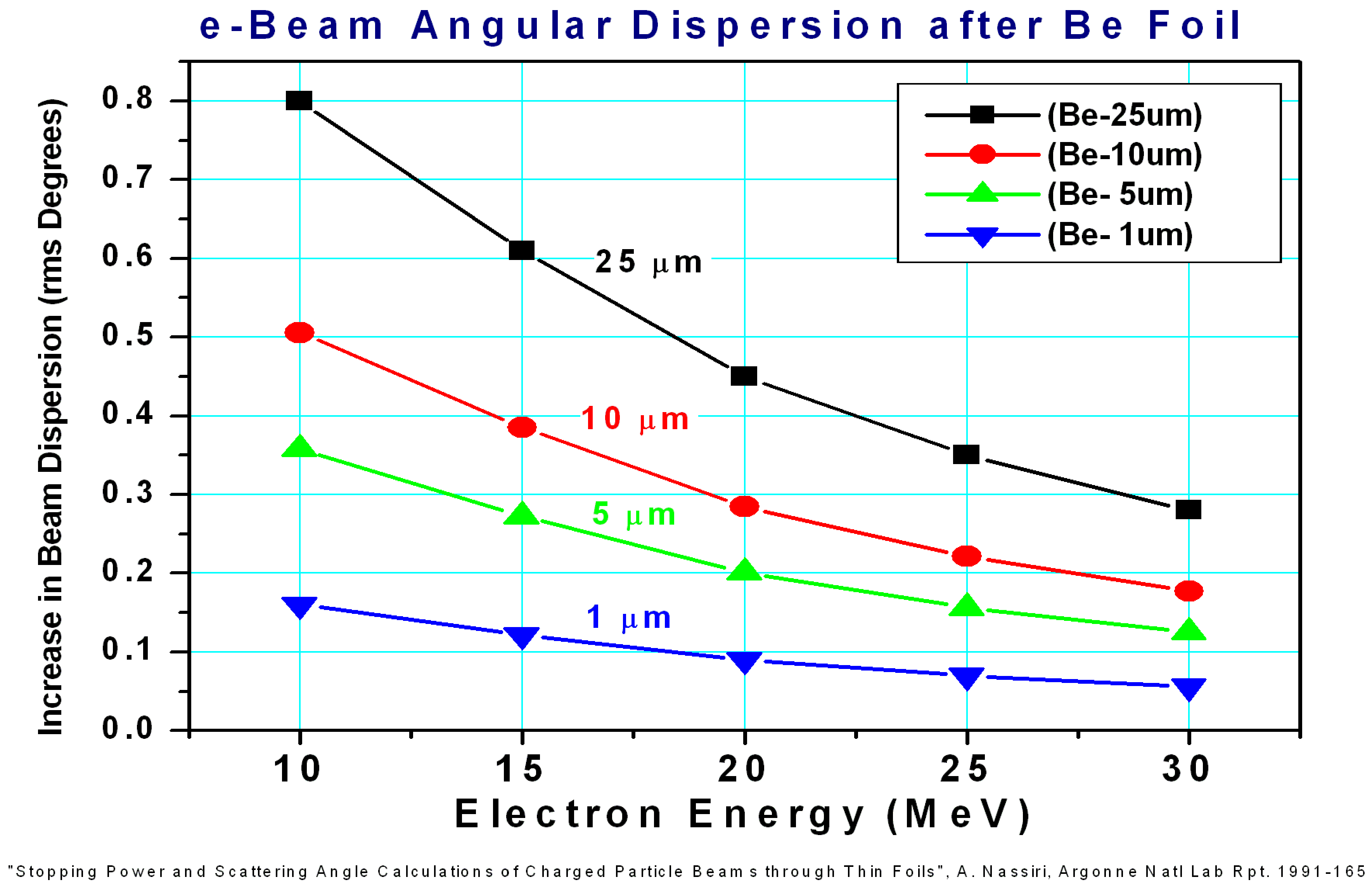

e-Beam Divergence (theory paper)

High Transparency S/S Mesh for Support

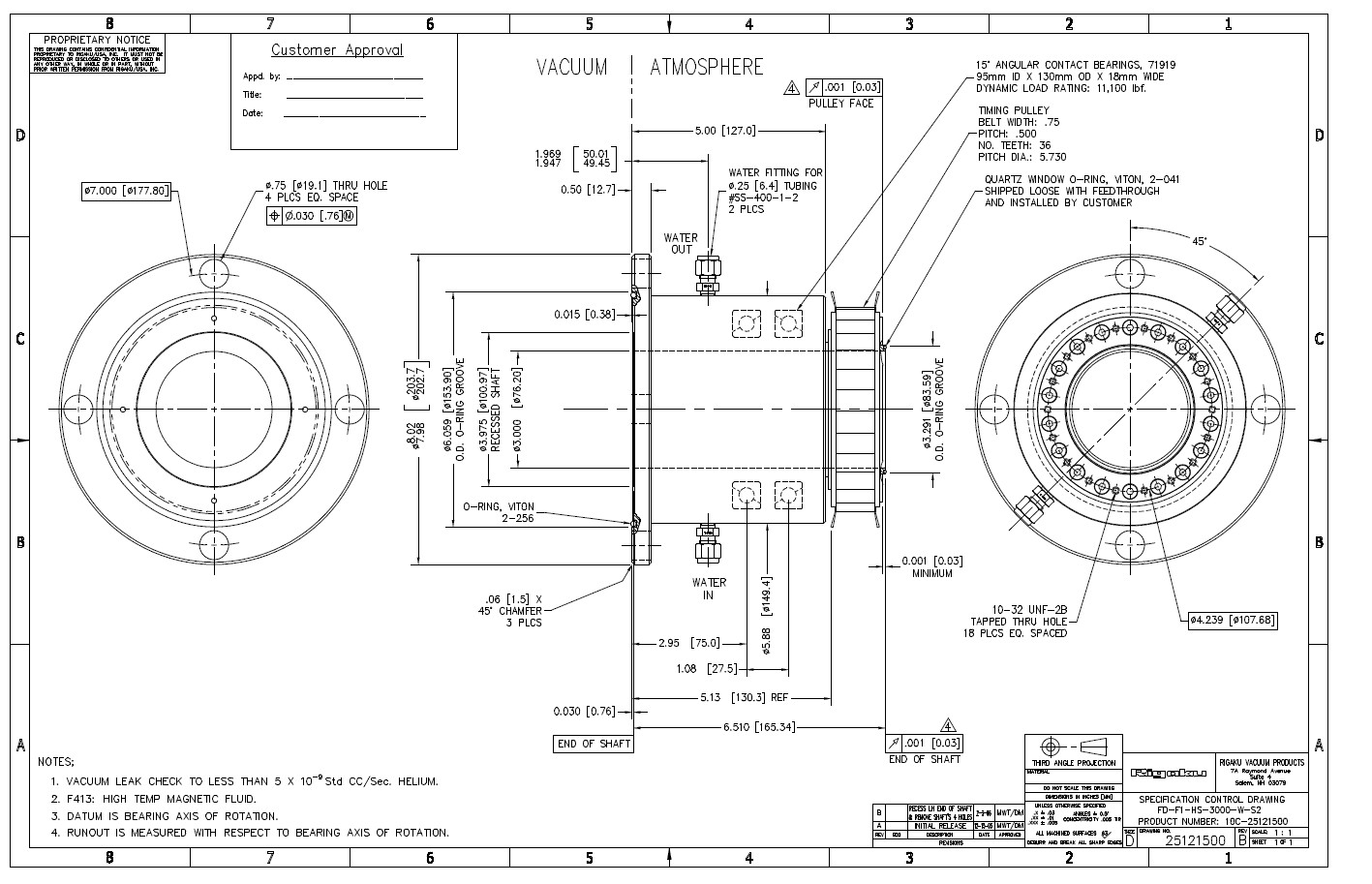

Rotary Flange (Schematic)Blueprint - Rotary Flange.jpg (262418 bytes)

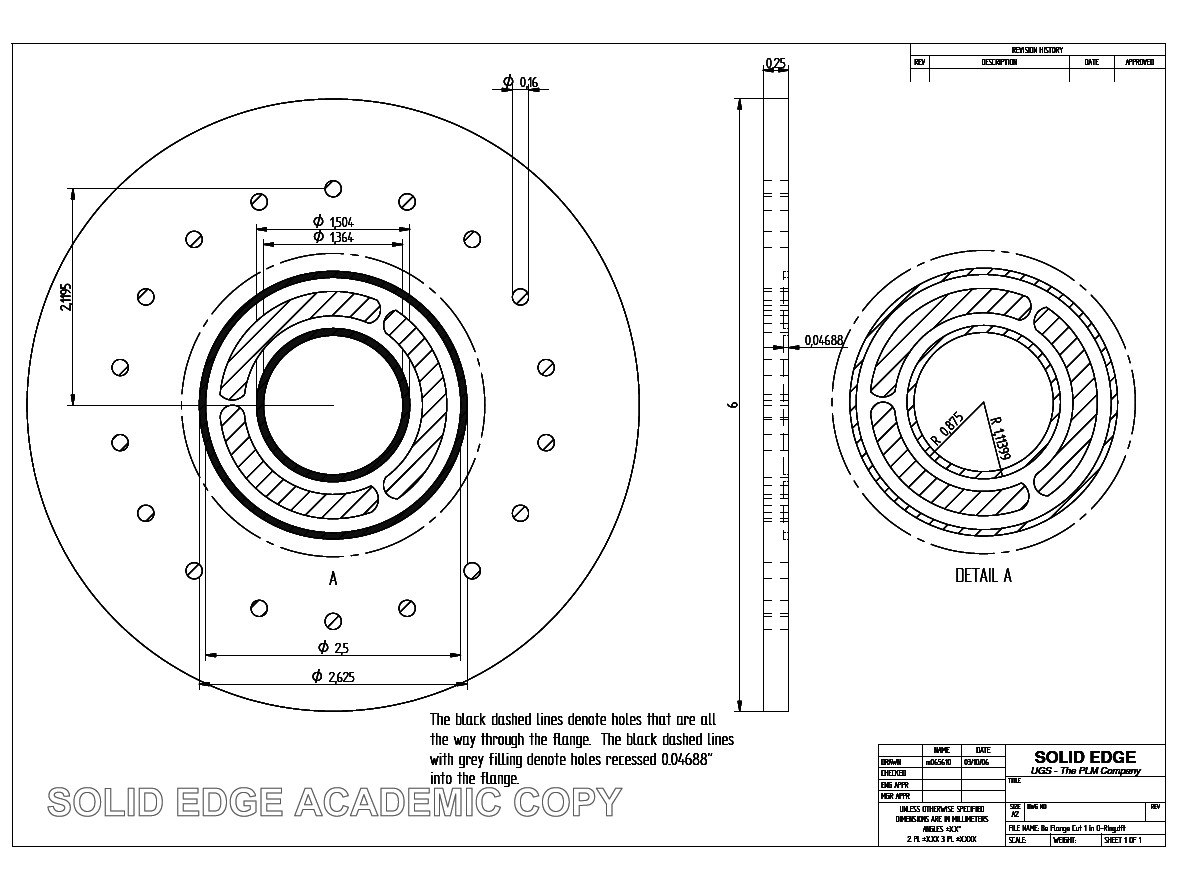

Exit Be Foil Flange -1 (Schematic)Exit flange (cover of Be foil).jpg (122843 bytes)

Exit Be Foil Flange -2 (Schematic)Exit flange (for Be foil).jpg (182531 bytes)

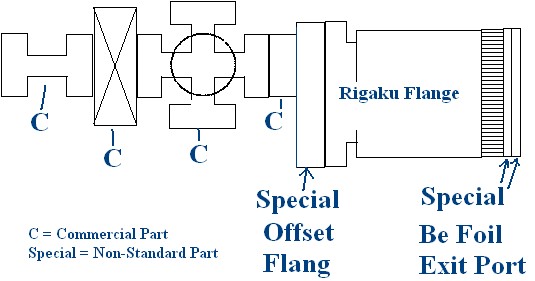

Rotary Flange (Assembly)Exit Window - Overall Diagram.jpg (35276 bytes)

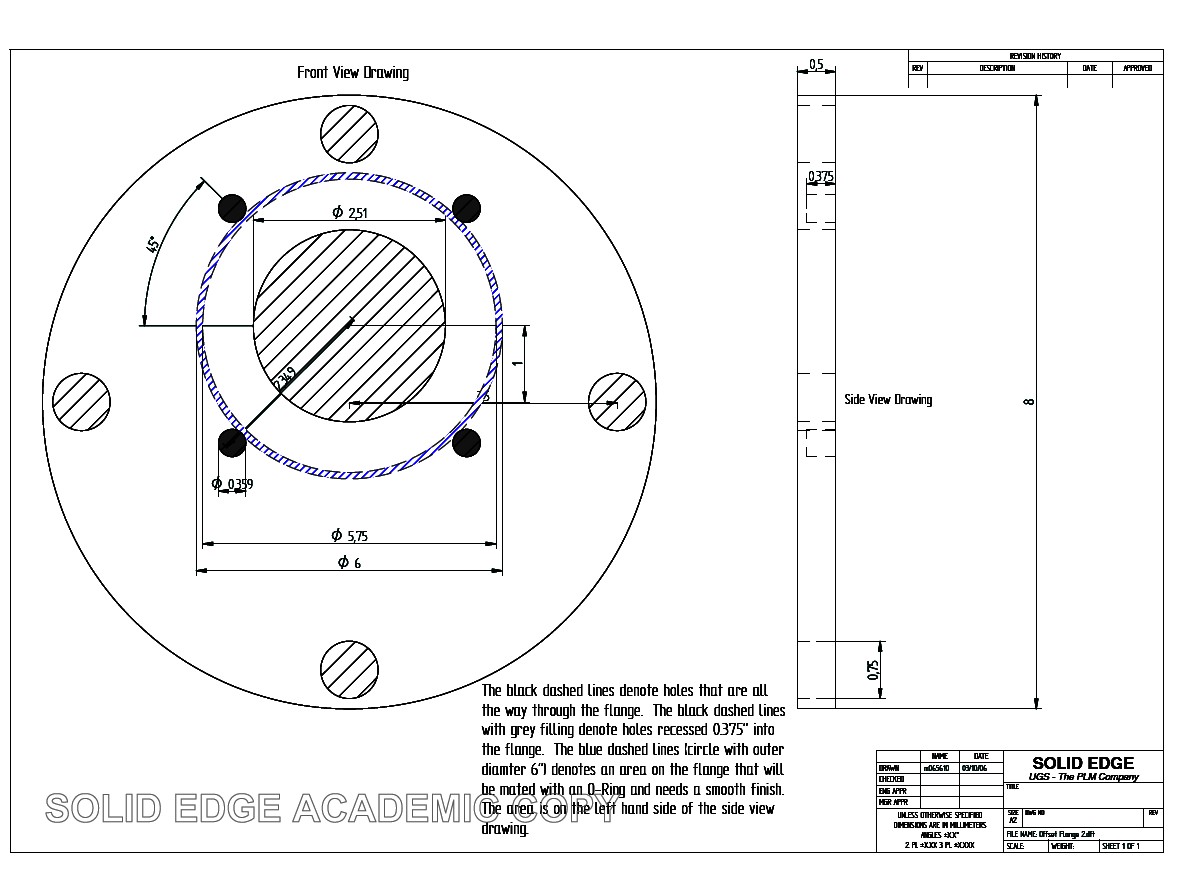

Beam Offset Flange (Schematic)Offset Flange.jpg (161777 bytes)
VAT Quick-Closing Valve (Manual)

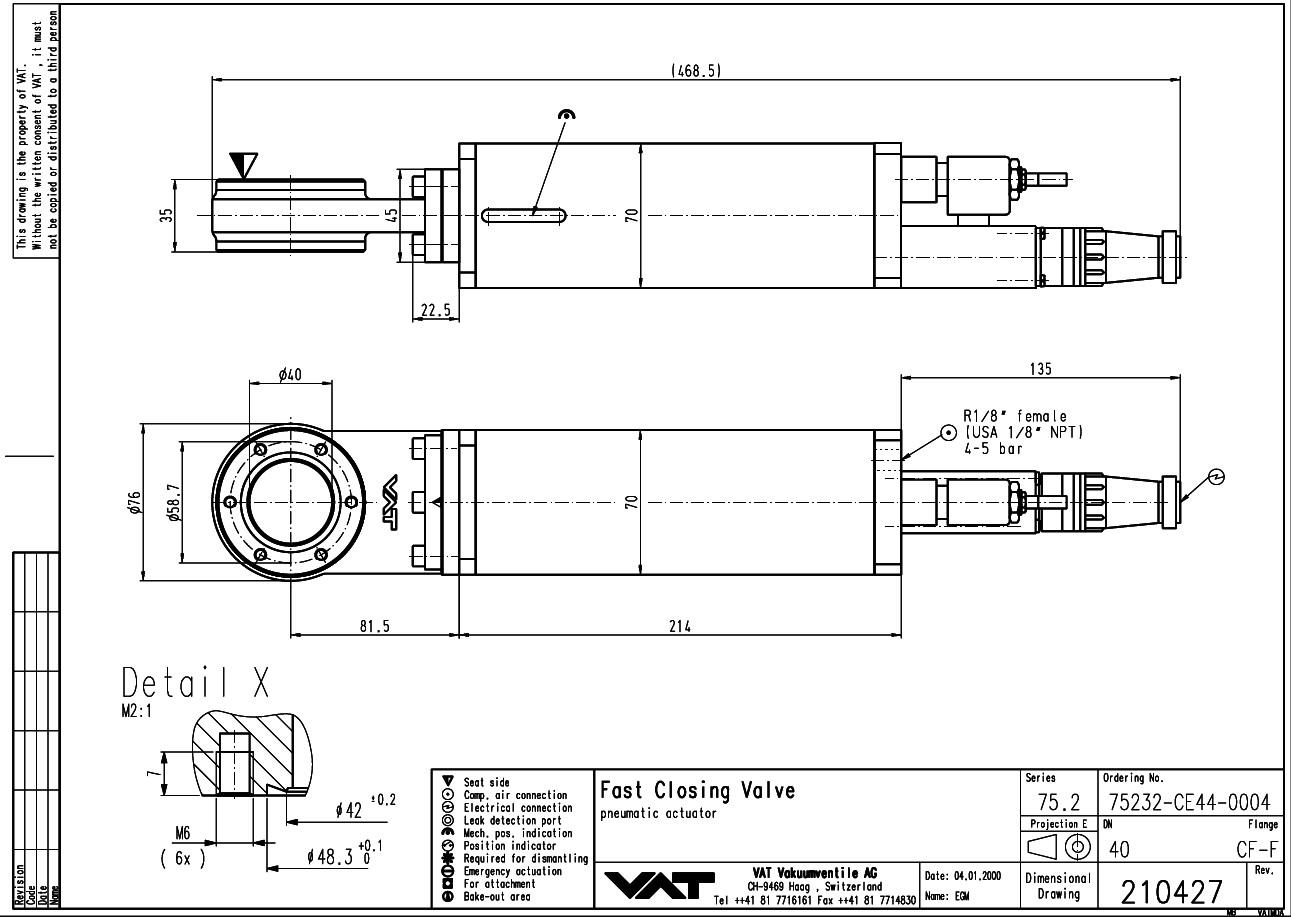

VAT Quick-Closing Valve (Schematic)VAT-75 DimDrawing.jpg (173189 bytes)

Rotary Flange -Details of various parts (paper)
